JANA LANE GUEST HOUSE / STUDIO Originally built as a guesthouse for traveling friends and family, this building is now the home of the Studio of Sustainable Design. The architect and his friends built the 500 sq ft, one-story structure with loft in 1998, on his home property at the foot of the Northern Idaho Mountains.

SMALL HOUSES

LARGER HOUSES

MULTI FAMILY

NON RESIDENTIAL

ALLEY FRIENDS ARCHITECTS

ARCHIVE

IN PROGRESS


Jana Lane Guest House / Studio, photo 1

East Entry Porch


Jana Lane Guest House / Studio, photo 02

South View


The structure was built with load-bearing, two-string straw-bale walls. Participants in a three-day workshop learned to stack, compress, and double-coat the walls with cement stucco. They learned that air-bag compression produces strong, well-insulated walls.Ecological features include recycled foam ICF agrade beams on a rubble trench foundation,recycled wood ICF ashower walls, sun-facing summer ventilation, and radiant floor heating. More ecological elements include a waterless composting toilet, bluegrass straw-board wall finishes, a reused entry door, glass blocks, and wood timbers.

Jana Lane Guest House / Studio, photo 03 Western Loft Windows
Jana Lane Guest House / Studio, photo 04 Wall Alcove in Strawbale


Jana Lane Guest House / Studio, photo 05 Reversed Roof Dormer


The shape is a simple rectangle with curved end walls. An eastern porch draws in sun during the winter and shade during the summer and adds outdoor living space. Salvaged hand-peeled logs and beams frame the entry.

Southern windows and a reversed roof dormer fill the interior space with light and passive solar warmth, while venting summer heat. High western windows create views from the sleeping loft.

Jana Lane Guest House / Studio, photo 06

Studio Interior to East


Jana Lane Guest House / Studio, photo 07

Studio Interior to Loft


Jana Lane Guest House / Studio, photo 08

Window Shelf

Jana Lane Guest House / Studio, photo 09

Winter View



Jana Lane Guest House / Studio, photo 10

Glass Sun in Stucco

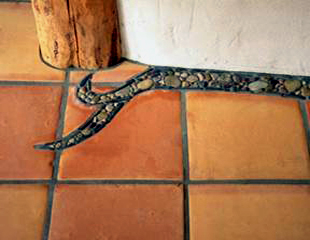

Jana Lane Guest House / Studio, photo 11

Stone & Tile Floor Detail



The radiant-heat concrete floor is finished with hand-made clay tiles and detailed with inlaid pebbles from the shore of Lake Pend Oreille. Colored glass artwork decorates deep slate windowsills set in white stucco walls.
